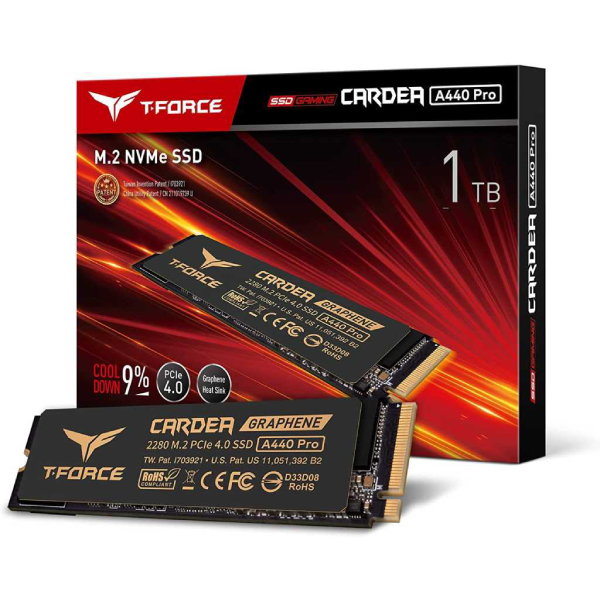

Team Group T-FORCE CARDEA A440 M.2 2280 1TB
- Enjoy the lightning speed of the PCIe Gen4 x4
- Featuring two patented heat sinks
- Effective cooling—flexible installation
- Supports the latest NVMe standard
- Taiwan Utility Patent (number: M541645)
- Taiwan Invention Patent (number: I703921)
- China Utility Patent (number: CN 211019739 U)
- Description
- Additional information
- Reviews (0)
Description
| Model | CARDEA A440 | |||
| Interface | PCIe Gen4.0 x4 with NVMe | |||
| Capacity | 1TB | |||
| Voltage | DC +3.3V | |||
| Operation Temperature | 0˚C ~ 70˚C | |||
| Storage Temperature | -40˚C ~ 85˚C | |||
| DRAM Cache | YES | |||
| Terabyte Written (TBW) | 1TB – 700TBW | |||
| Performance | Crystal Disk Mark: 1TB Read/Write: up to 7,000/5,500 MB/s |
IOPS (IOMeter): 1TB Read/Write: up to 650K/700K |
||
| Weight | 13g (with Graphene heat sink) 46g (with Aluminum heat sink) |
|||
| Dimensions | 80.0(L) x 22.0(W) x 3.7(H) mm (with Graphene heat sink) 80.0(L) x 23.4(W) x 12.9(H) mm (with Aluminum heat sink) |
|||
| Humidity | RH 90% under 40°C (operational) | |||
| Vibration | 80Hz~2,000Hz/20G | |||
| Shock | 1,500G/0.5ms | |||
| MTBF | 3,000,000 hours | |||
| Operating System | System Requirements:
|
|||
| Warranty | 5-year limited warranty[7] | |||
Additional information
| Weight | 1 kg |
|---|---|
| Dimensions | 8 × 2.3 × 1.9 cm |
